QB 132 DIY build. In progress Join in follow along

Ok parts in hand ready to do this. I was going to do 2 frames but since decided against that since I picked up a 2x4 tent for cheap. So I am going to try and just cover that area with one frame.

Tools:
Small drill
5/32 drill bit
Pliers or wrench for bolts
Wire cutters/strippers
Snips
File

Parts List:
10’ of 1/16 x 1” aluminum angle
4 3/16 x 1/2 Eye bolts
Pack of 10-24 x 1/2” machine screws and nuts go next size smaller cause I have to drill my holes bigger on my board. Not a big deal though.
Pack of Flat washers
4” Cable Ties
Flex Tubing 3/8x10’
3’ Power supply cable
18 gauge solid copper wire
HLG-240H-C1750A Driver
QB 132’s x4
Wago Connecters


So gonna get one going real quick and get started. Hope y’all follow a lot, enjoy and hopefully some may learn and follow. Any questions feel free to ask.

Thanks Jbum

13 Likes

Hell ya man

2 Likes

Set to watching because I will be building some soon!!! Just waiting for everything to arrive…

2 Likes

Sweet, bet it feels like Christmas morning

1 Like

Ok sorry for the delay had to help the better half decide on a paint color lol.

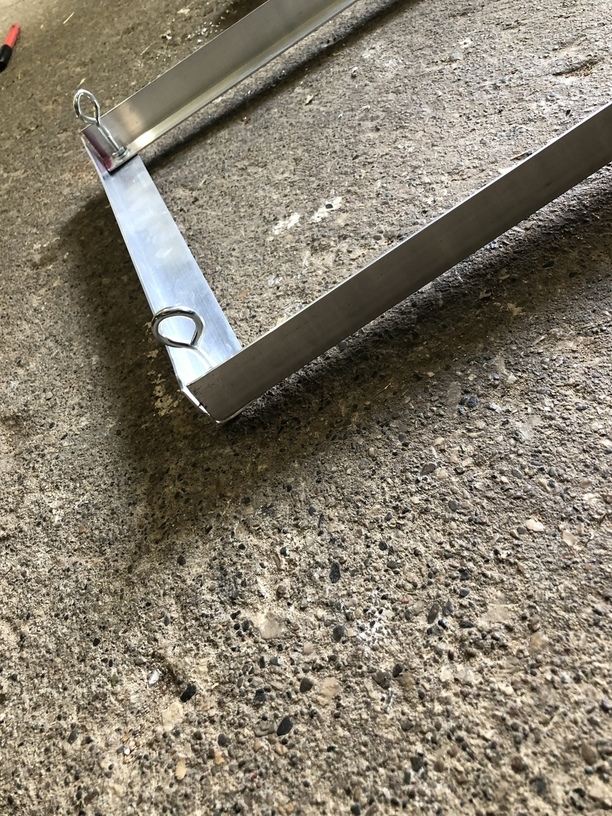

I cut two 40” pieces and two 12” inch pieces. I measured 1/2 inch from the the ends and a 1/2 from the edge to get my hole marks. Drilled the holes then marked my 12” piece underneath.
